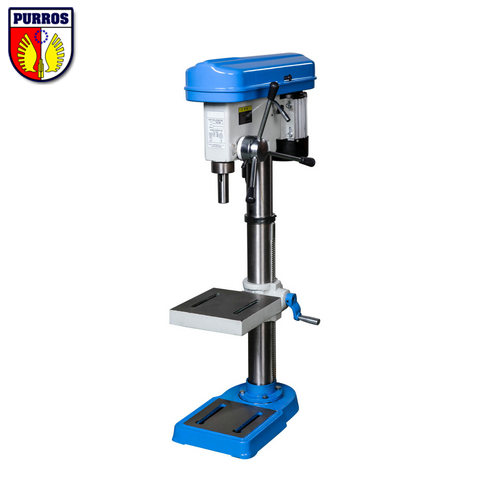

16mm Bench Drilling Press D4116T, 0.37kw

Description

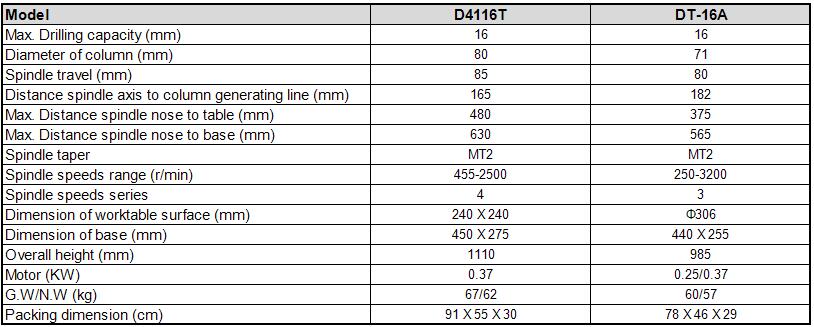

Model D4116T DT-16A
Max. Drilling capacity (mm) 16 16
Diameter of column (mm) 80 71
Spindle travel (mm) 85 80
Distance spindle axis to column generating line (mm) 165 182
Max. Distance spindle nose to table (mm) 480 375
Max. Distance spindle nose to base (mm) 630 565
Spindle taper MT2 MT2
Spindle speeds range (r/min) 455-2500 250-3200
Spindle speeds series 4 3
Dimension of worktable surface (mm) 240 X 240 Φ306
Dimension of base (mm) 450 X 275 440 X 255
Overall height (mm) 1110 985
Motor (KW) 0.37 0.25/0.37
G.W/N.W (kg) 67/62 60/57
Packing dimension (cm) 91 X 55 X 30 78 X 46 X 29
