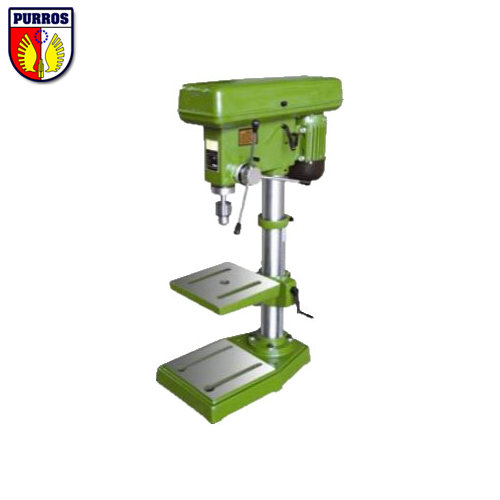

25mm Bench Drilling Press DQD4125, 0.75kw

Description

Model DQ4125/DQ4132 DQD4125/DQD4132
Max. Drilling capacity (mm) 25/31.5 25/31.5
Diameter of column (mm) 85 85
Spindle travel (mm) 110 110
Distance spindle axis to column generating line (mm) 200 200
Max. Distance spindle nose to table (mm) 480 390
Max. Distance spindle nose to base (mm) 670 1140
Spindle taper MT3 MT3
Spindle speeds range (r/min) 200-2280
150-2270
200-2280
150-2270
Spindle speeds series 9/12 9/12
Dimension of worktable surface (mm) 280 X 280 or Φ360 280 X 280 or Φ360
Dimension of base (mm) 566 X 356 566 X 356
Overall height (mm) 1110 1680
Motor (W) 750 750
G.W/N.W (kg) 105/98 115/108
Packing dimension (cm) 108 X 77 X 34 108 X 77 X 34
