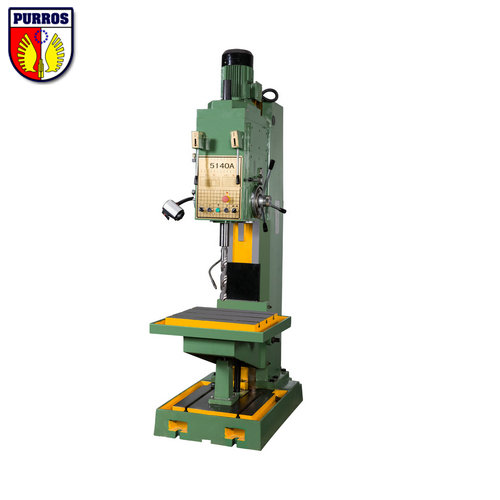

40mm Vertical Drilling Press D5140A, 3kw

Category: Tags: , , , , ,

Description

Model D5140A D5150A
Max. Drilling capacity (mm) 40 50
Max. feed resistance (N) 16000 16000
Max. Perimissible spindle torque (N.m) 350 350
Power of Main motor (KW) 3 4
Throat distance (mm) 335 335
Spindle taper MT4 MT5
Spindle travel (mm) 250 250
Spindle box travel (mm) 200 200
Spindle speeds range(steps) (r/min) 31.5-1400(12) 31.5-1400(12)
Feed rates(steps) (mm/rev) 0.056-1.8(9) 0.056-1.80(9)
Max. Travel of table (mm) 300 300
Working Surface of Worktable (mm) 560 X 480 560 X 480
Max. Distance from spindle nose to working surface (mm) 750 750
Overall dimension (mm) 1090 X 905 X 2535 1090 X 905 X 2530
G.W/N.W (kg) 1250/1890 1250/1890
Packing dimension (cm) 266 X 112 X 144 266 X 112 X 144
