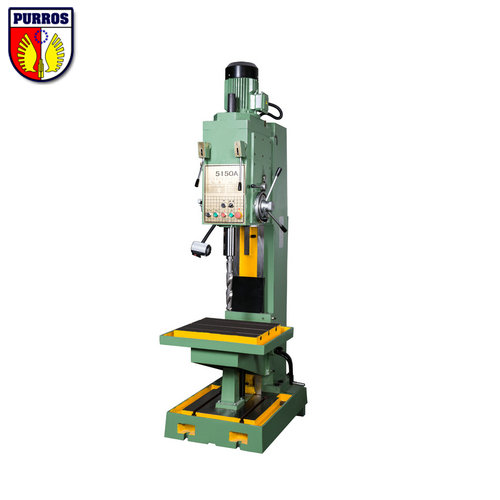

50mm Vertical Drilling PressD5150A, 4kw
50mm Vertical Drilling PressD5150A, 4kw

50mm Vertical Drilling PressD5150A, 4kw

Category: Tags: , , , , ,

Description

Model D5150A D5150B
Max. Drilling capacity (mm) 50 50
Max. feed resistance (N) 16000 16000
Max. Perimissible spindle torque (N.m) 350 350
Power of Main motor (KW) 3 3
Throat distance (mm) 335 335
Spindle taper MT5 MT5
Spindle travel (mm) 250 250
Spindle box travel (mm) 200 200
Spindle speeds range (r/min) 31.5-1400 31.5-1400
Feed rates (mm/rev) 0.056-1.8 0.056-1.8
Max. Travel of table (mm) 300 300
Working Surface of Worktable (mm) 560 X 480 560 X 480
Max. Distance from spindle nose to working surface (mm) 750 750
Overall dimension (mm) 1090 X 905 X 2530 1090 X 905 X 2530
G.W/N.W (kg) 1250/1890 1250/1890
Packing dimension (cm) 266 X 112 X 144 266 X 112 X 144
PURROS Machinery is widely recognized for industrial automated products, our full line of products are including: Auto Feed Drill Machine, Servo Feed Drill Machine, Servo Tapping Machine, Hydro Speed Regulators, Roller Burnishing Tools, Multi Spindle Heads, Special Purpose Machines (SPM), and more.
