Description

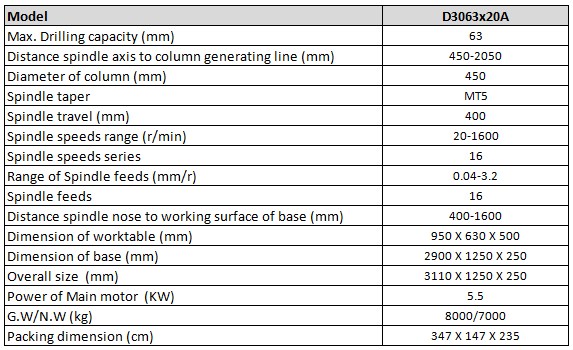

| Model |

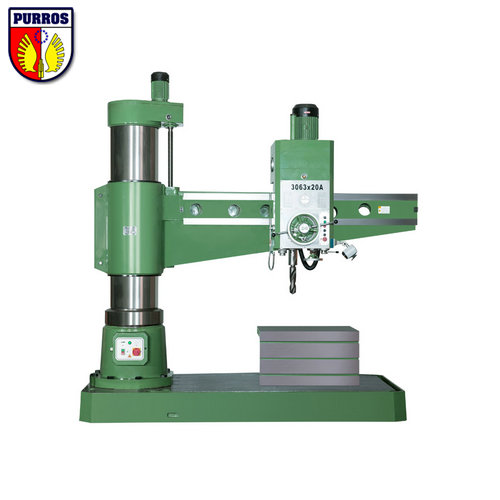

D3063x20A |
| Max. Drilling capacity (mm) |
63 |
| Distance spindle axis to column generating line (mm) |
450-2050 |
| Diameter of column (mm) |
450 |
| Spindle taper |
MT5 |
| Spindle travel (mm) |
400 |
| Spindle speeds range (r/min) |
20-1600 |
| Spindle speeds series |
16 |
| Range of Spindle feeds (mm/r) |
0.04-3.2 |
| Spindle feeds |
16 |
| Distance spindle nose to working surface of base (mm) |
400-1600 |
| Dimension of worktable (mm) |
950 X 630 X 500 |
| Dimension of base (mm) |
2900 X 1250 X 250 |
| Overall size (mm) |
3110 X 1250 X 250 |
| Power of Main motor (KW) |
5.5 |
| G.W/N.W (kg) |
8000/7000 |
| Packing dimension (cm) |
347 X 147 X 235 |
PURROS Machinery is widely recognized for industrial automated products, our full line of products are including: Auto Feed Drill Machine, Servo Feed Drill Machine, Servo Tapping Machine, Hydro Speed Regulators, Roller Burnishing Tools, Multi Spindle Heads, Special Purpose Machines (SPM), and more.
