Description

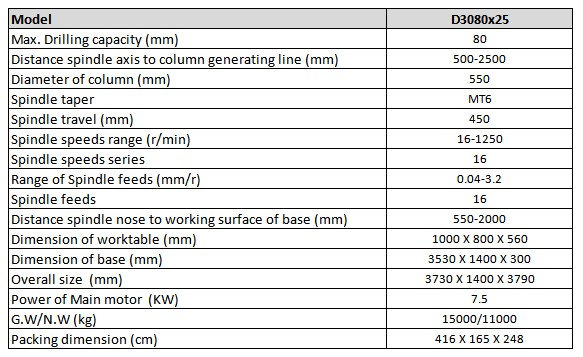

| Model |
D3080x25 |
| Max. Drilling capacity (mm) |
80 |
| Distance spindle axis to column generating line (mm) |
500-2500 |
| Diameter of column (mm) |
550 |
| Spindle taper |
MT6 |
| Spindle travel (mm) |
450 |
| Spindle speeds range (r/min) |
16-1250 |
| Spindle speeds series |
16 |
| Range of Spindle feeds (mm/r) |
0.04-3.2 |
| Spindle feeds |
16 |
| Distance spindle nose to working surface of base (mm) |
550-2000 |
| Dimension of worktable (mm) |
1000 X 800 X 560 |
| Dimension of base (mm) |
3530 X 1400 X 300 |
| Overall size (mm) |
3730 X 1400 X 3790 |
| Power of Main motor (KW) |
7.5 |
| G.W/N.W (kg) |
15000/11000 |
| Packing dimension (cm) |
416 X 165 X 248 |
