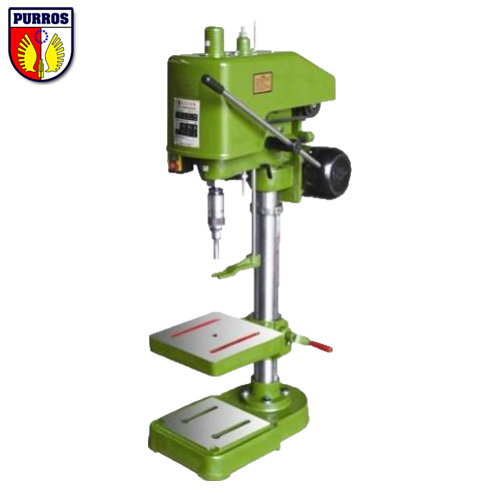

Bench Tapping Machine TWJ-16,Tapping capacity: M16(Cast Iron) / M12(Steel)


Model TWJ-16
Max. Tapping capacity (mm) (Cast Iron) M16 / (Steel)M12
Diameter of column (mm) 73
Spindle travel (mm) 50
Distance spindle axis to column generating line (mm) 183
Max. Distance spindle nose to table (mm) 485
Max. Distance spindle nose to base (mm) 660
Spindle taper B18
Spindle speeds range (r/min) 240、380、570
Spindle speeds series 3
Dimension of base (mm) 270 X 280
Spindle box travel (mm) 520 X 310
Overall height (mm) 1220
Power of main motor (KW) 0.55/0.75
G.W/N.W (kg) 120/102
Packing dimension (cm) 70 X 44 X 128
PURROS Machinery is widely recognized for industrial automated products, our full line of products are including: Auto Feed Drill Machine, Servo Feed Drill Machine, Servo Tapping Machine, Hydro Speed Regulators, Roller Burnishing Tools, Multi Spindle Heads, Special Purpose Machines (SPM), and more.
