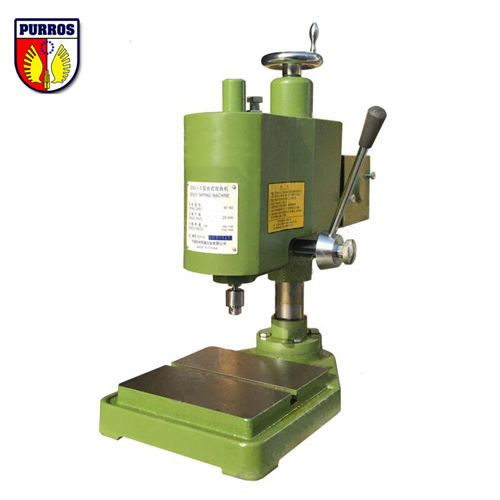

Bench Tapping Machine TWJ-3, Tapping capacity: (Cast Iron) M3 / (Steel)M2


Model TWJ-3
Max. Tapping capacity (mm) (Cast Iron) M3 / (Steel)M2
Diameter of column (mm) 40
Max. Spindle travel (mm) 25
Distance spindle center to column busbar (mm) 127
Max. Distance spindle nose to table (mm) /
Max. Distance spindle nose to base (mm) 185
Spindle taper JTO
Spindle speeds range (r/min) Positive: 990,1150
Negative: 1350,1550
Spindle speeds series 2
Dimension of intermediate table (mm) /
Dimension of base table (mm) 185 X 175
Overall height (mm) 560
Power of main motor (KW) 0.18
G.W/N.W (kg) 26/21
Packing dimension (cm) 46.5 X 31 X 45
