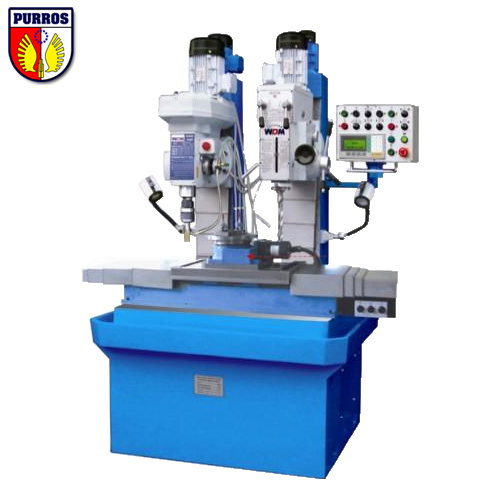

Double-spindle Compound Machine For Drilling/Tapping DT32


Model DT32
Max. Tapping capacity (mm) M32
Max. Drilling capacity (mm) 32
Spindle travel (mm) 65/130
Distance spindle axis to column generating line (mm) 380
Distance column (mm) 500
Dimension spindle nose to worktable (mm) 500
Spindle taper MT3/MT4
Spindle speeds range (r/min) 80-280/60-2200
Spindle speeds series 3/12
Dimension of worktable surface (mm) 1100 X 345
Dimension of base worktable (mm) 1100 X 600
Table travel (mm) 500
Overall height (mm) 2230
Motor (KW) 1.5,0.85/1.1
G.W/N.W (kg) 2000/1500
Packing dimension (cm) 1720 X 132 X 245
