Description

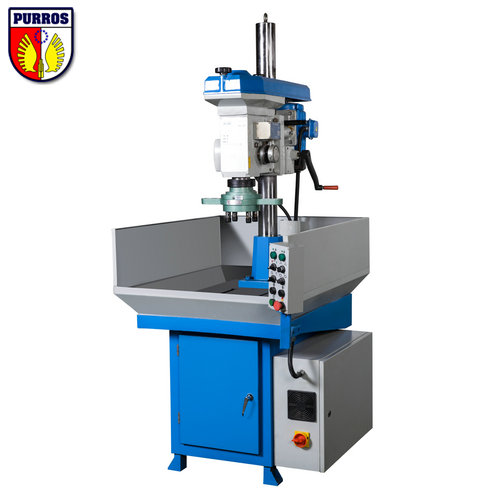

| Model | TB6532 |
| Max. Tapping capacity (mm) | M32 |
| Diameter of column (mm) | 95 |
| Spindle travel (mm) | 65 |
| Distance spindle axis to column generating line (mm) | 252.5 |
| Max. Distance spindle nose to base (mm) | 600 |
| Spindle taper | MT3 |
| Spindle speeds range (r/min) | 80、150、288(6P Motor) or 120、220、420(4P Motor) |
| Spindle speeds series | 3 |
| Dimension of base (mm) | 690 X 450 |
| Spindle box travel (mm) | 450 |
| Overall height (mm) | 1165 |
| Power of main motor (KW) | 1.5(6P) |
| Auto-feeding thread pitch for which suits machine | 1.25/1.5/1.75/2.0/2.5/3.0/3.5mm 19/18/16/14/13/12/11/10/9/8/7TPI |
| G.W/N.W (kg) | 650/600 |
| Packing dimension (cm) | 154 X 112 X 230 |
