·PRAC-10T F Pedal Control
·PRAC-10T H Button Control
| Model | PRAC-5TA | PRAC-8T | PRAC-10T | ||||||
| Maximum working height (mm) | 300 | 430 | 430 | ||||||
| Specification of booster cylinder (mm) | CPT-80-150-15 | CPT-80-150-15 | CPT-100-150-15 | ||||||
| Total stroke (mm) | 150 | 150 | 150 | ||||||
| Rapid Stroke (mm) | 135 | 135 | 135 | ||||||
| Supercharging stroke (mm) | 15 | 15 | 15 | ||||||
| Times of back and forth per minute | about 30 | about 25 | about 20 | ||||||
| Area of working bench (mm) | 360×260 | 500×350 | 500×350 | ||||||
| Power (AC,50HZ) | 220V | 220V | 220V | ||||||
| Weight (kg) | 265 | 268 | 275 | ||||||
| Mpa | Supercharging pressure |
Pre-pressure pressure |
Return pressure |
Supercharging pressure |
Pre-pressure pressure |
Return pressure |
Supercharging pressure |
Pre-pressure pressure |
Return pressure |
| 0.3 | 3000 | 150 | 120 | 3700 | 150 | 120 | 4680 | 234 | 180 |
| 0.4 | 4000 | 200 | 160 | 5020 | 200 | 160 | 6240 | 312 | 240 |
| 0.5 | 5000 | 250 | 200 | 6280 | 250 | 200 | 7800 | 390 | 300 |
| 0.6 | 6000 | 300 | 240 | 7530 | 300 | 240 | 9360 | 468 | 360 |
| 0.7 | 7000 | 350 | 280 | 8790 | 350 | 280 | 10920 | 546 | 420 |
The actual output is about 80% theoretical output.
| Model | C | C1 | D | d | F | G | G1 | H | h | h1 | J | L | L1 | N |
| PRAC-5TA | 562 | 280 | Φ53 | Φ30 | 260 | 380 | 360 | 1250 | 300 | 190 | 130 | 360 | 45 | 155 |
| PRAC-8T | 562 | 280 | Φ53 | Φ30 | 260 | 380 | 360 | 1280 | 300 | 190 | 130 | 360 | 45 | 155 |
| PRAC-10T | 562 | 280 | Φ53 | Φ30 | 260 | 380 | 360 | 1280 | 300 | 190 | 130 | 360 | 45 | 155 |

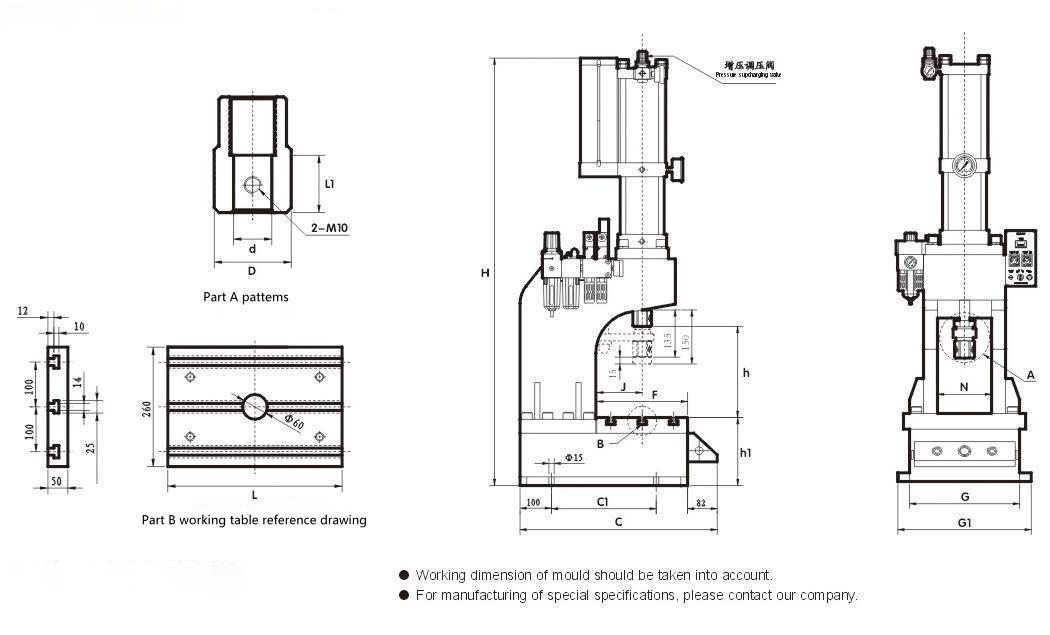

Drawing on physical dimensions
Supercharging Press PRAC
· Take compressed air as power source, easy to operate.
· There is not noise and environmental pollution generated by hydraulic system in standby timed, power consumption can be saved, and production costs can be reduced.
· Use the supercharging principle of air oil, to get quick action and high output. higher power requirements.
· Multi-functional purposes is suitable for pressure into the bearings, punching, riveting, assembly, cutting, etc.
· Output force is easily adjusted by adjusting air pressure, the required pressure can be gotten only by adjusting air pressure, it is simple and convenient.
· Type C machine bench structure, easy operation, convenient for material loading and unloading, consistent with working efficiency.
· Safety design, comfortable operation, human-based consideration suitable for long-tern operation.
· If need to do quick digression during operation, quick exhaust valve is optional.
