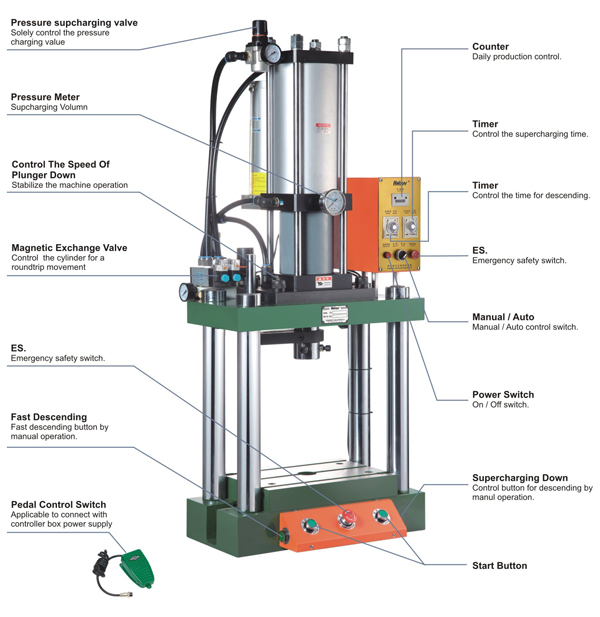

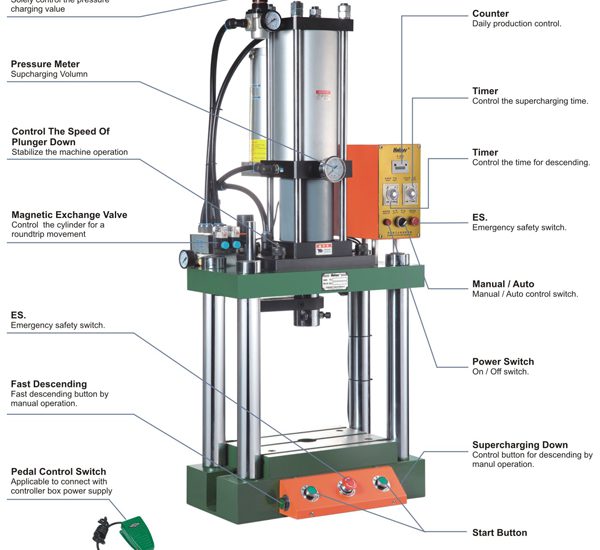

Description
·PRAD-20T F Pedal Control
·PRAD-20T H Button Control
| Model | PRAD-15T | PRAD-20T | ||||
| Maximum working height (mm) | 300 | 300 | ||||
| Specification of booster cylinder (mm) | CPT-125-150-15 | CPT-125-150-15 | ||||
| Total stroke (mm) | 150 | 150 | ||||
| Rapid Stroke (mm) | 135 | 135 | ||||
| Supercharging stroke (mm) | 15 | 15 | ||||
| Times of back and forth per minute | about 15 | about 15 | ||||
| Area of working bench (mm) | 420×280 | 420×280 | ||||
| Power (AC,50HZ) | 220V | 220V | ||||
| Weight (kg) | 310 | 320 | ||||
| Mpa | Supercharging pressure (KG) |
Pre-pressure pressure (KG) |
Return pressure (KG) |
Supercharging pressure (KG) |
Pre-pressure pressure (KG) |
Return pressure (KG) |
| 0.3 | 7680 | 360 | 270 | 10500 | 360 | 270 |
| 0.4 | 10240 | 480 | 360 | 14000 | 480 | 360 |
| 0.5 | 12800 | 600 | 450 | 17500 | 600 | 450 |
| 0.6 | 15350 | 720 | 540 | 21000 | 720 | 540 |
| 0.7 | 17900 | 840 | 630 | 24500 | 840 | 630 |
The actual output is about 80% theoretic al output.
| Model | C | C1 | C2 | D | d | L1 | G | G1 | H | h | h1 | L | W |
| PRAD-15T | 480 | 280 | 180 | φ75 | φ40 | 55 | 580 | 480 | 1300 | 300 | 150 | 420 | 280 |
| PRAD-20T | 480 | 280 | 180 | φ75 | φ40 | 55 | 580 | 480 | 1350 | 300 | 150 | 420 | 280 |

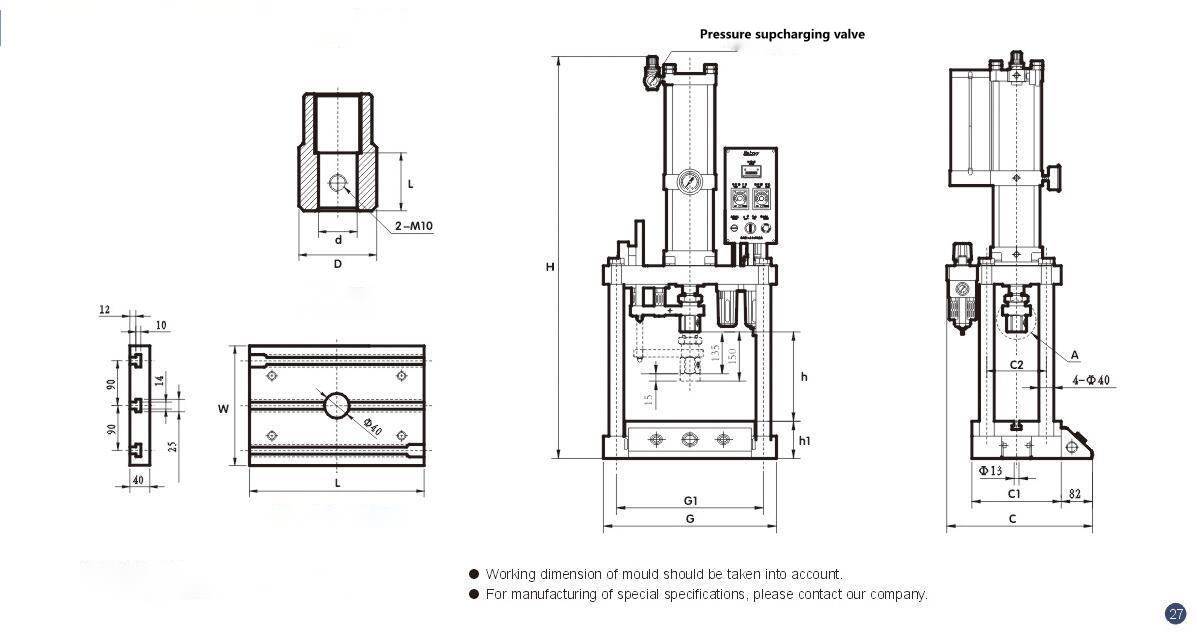

Drawing on physical dimensions
· Take compressed air as power source, easy to operate.
· There is not noise and environmental pollution generated by hydraulic system in standby timed, power consumption can be saved, and production costs can be reduced.
· Use the supercharging principle of air oil, to get quick action and high output. higher power requirements.
· Multi-functional purposes is suitable for pressure into the bearings, punching, riveting, assembly, cutting, etc.
· Output force is easily adjusted by adjusting air pressure, the required pressure can be gotten only by adjusting air pressure, it is simple and convenient.
· Type C machine bench structure, easy operation, convenient for material loading and unloading, consistent with working efficiency.
· Safety design, comfortable operation, human-based consideration suitable for long-tern operation.
· If need to do quick digression during operation, quick exhaust valve is optional.
