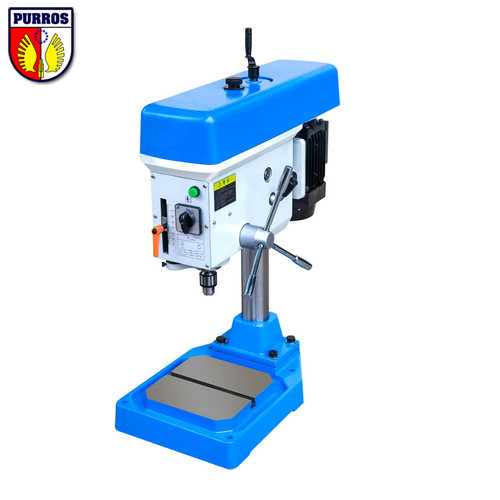

6mm Bench Drilling/Tapping Press D4006G, 0.37kw


Model D4006G
Max. Drilling capacity (mm) Φ6
Diameter of column (mm) Φ55
Spindle Sleeve Diameter (mm) Φ40
Spindle travel (mm) 65
Distance spindle axis to column generating line (mm) 140
Max. Distance spindle nose to base (mm) 215
Spindle taper B10
Spindle speeds range (r/min) 2000-12000
Spindle speeds series 3
Dimension of base (mm) 260 X 350
Overall height (mm) 620
Motor (KW) 0.37
Net weight (kg) ≈50
Packing dimension (cm) 60 X 31 X 58
PURROS Machinery is widely recognized for industrial automated products, our full line of products are including: Auto Feed Drill Machine, Servo Feed Drill Machine, Servo Tapping Machine, Hydro Speed Regulators, Roller Burnishing Tools, Multi Spindle Heads, Special Purpose Machines (SPM), and more.
