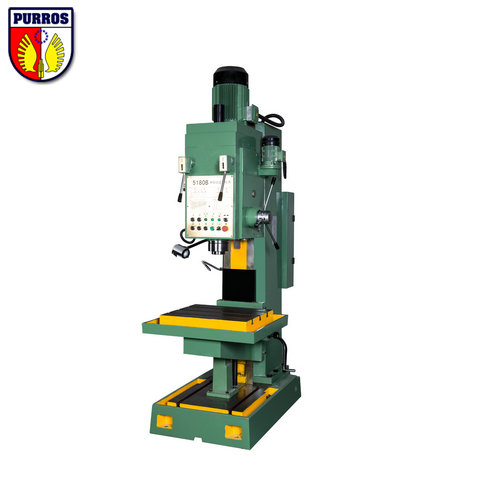

80mm Vertical Drilling Press D5180B, 7.5kw
80mm Vertical Drilling Press D5180B, 7.5kw

80mm Vertical Drilling Press D5180B, 7.5kw

Category: Tags: , , , , ,

Description

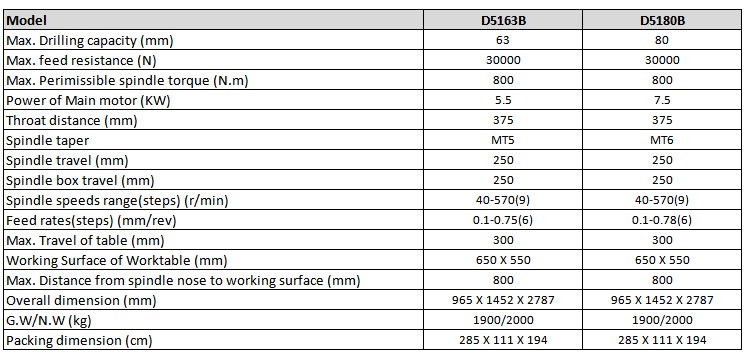

Model D5163B D5180B
Max. Drilling capacity (mm) 63 80
Max. feed resistance (N) 30000 30000
Max. Perimissible spindle torque (N.m) 800 800
Power of Main motor (KW) 5.5 7.5
Throat distance (mm) 375 375
Spindle taper MT5 MT6
Spindle travel (mm) 250 250
Spindle box travel (mm) 250 250
Spindle speeds range(steps) (r/min) 40-570(9) 40-570(9)
Feed rates(steps) (mm/rev) 0.1-0.75(6) 0.1-0.78(6)
Max. Travel of table (mm) 300 300
Working Surface of Worktable (mm) 650 X 550 650 X 550
Max. Distance from spindle nose to working surface (mm) 800 800
Overall dimension (mm) 965 X 1452 X 2787 965 X 1452 X 2787
G.W/N.W (kg) 1900/2000 1900/2000
Packing dimension (cm) 285 X 111 X 194 285 X 111 X 194
PURROS Machinery is widely recognized for industrial automated products, our full line of products are including: Auto Feed Drill Machine, Servo Feed Drill Machine, Servo Tapping Machine, Hydro Speed Regulators, Roller Burnishing Tools, Multi Spindle Heads, Special Purpose Machines (SPM), and more.
