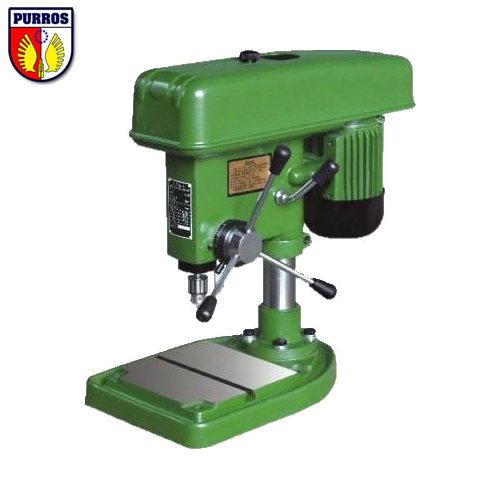

6mm Bench Drilling Press D406C, 0.25kw

Description

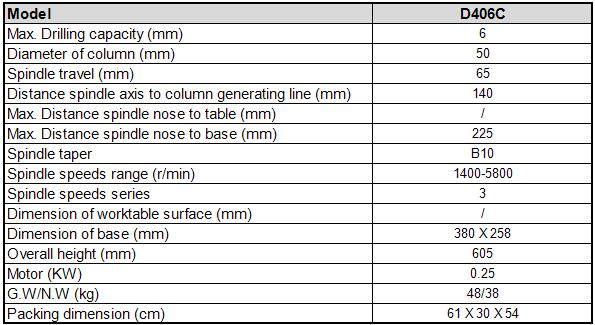

Model D406C
Max. Drilling capacity (mm) 6
Diameter of column (mm) 50
Spindle travel (mm) 65
Distance spindle axis to column generating line (mm) 140
Max. Distance spindle nose to table (mm) /
Max. Distance spindle nose to base (mm) 225
Spindle taper B10
Spindle speeds range (r/min) 1400-5800
Spindle speeds series 3
Dimension of worktable surface (mm) /
Dimension of base (mm) 380 X 258
Overall height (mm) 605
Motor (KW) 0.25
G.W/N.W (kg) 48/38
Packing dimension (cm) 61 X 30 X 54
